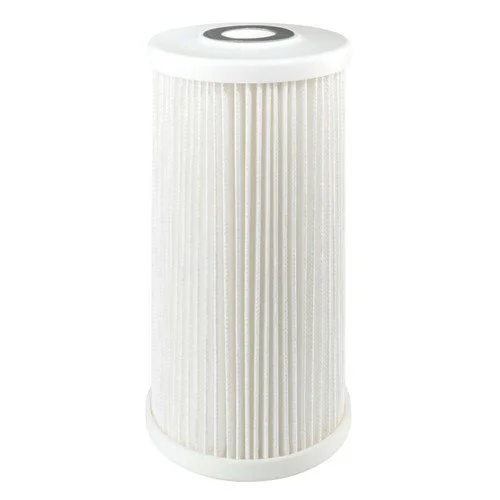

20 Micron Pleated Coarse Sediment Filter – 10" Big
20 Micron Pleated Coarse Sediment Filter – 10" Big (Atlas Filtri)
Short Description
A washable 20 micron pleated sediment filter cartridge designed for 10" Big Blue housings. It removes coarse particles such as sand, rust, and debris while maintaining high flow rates, making it ideal as a primary pre-filtration stage in whole house systems.
What This Filter Does
This pleated cartridge provides mechanical sediment filtration only (no carbon media). It is designed to remove larger suspended particles from water, including:
Sand and grit
Rust and corrosion particles
Dirt and debris
Coarse sediment and organic matter
The 20 micron rating targets larger particles first, helping protect downstream finer filters and improving overall system lifespan.
Key Benefits
Improves water clarity at the first stage
Protects plumbing, pumps, and downstream filters
Extends life of finer sediment and carbon filters
Washable pleated design for reuse (light cleaning)
High flow with low pressure drop
Key Features
20 micron nominal sediment filtration
10" Big Blue standard size
Pleated polyester/polypropylene media
Large surface area for high dirt holding capacity
Reusable (rinsable outer surface)
Suitable for domestic, rural, and commercial systems
Common Applications
Whole house sediment pre-filtration
Rainwater tank systems
Bore and well water systems
First-stage filtration before 10 micron / 5 micron / carbon filters
Pump and appliance protection
When to Replace or Clean
Typical maintenance interval: 3–6 months (varies depending on water quality)
Clean or replace sooner if:
Water flow drops noticeably
Filter becomes visibly dirty or clogged
Rinsing no longer restores flow
Note: While washable, performance gradually declines and full replacement is still required.
Specifications
Micron Rating: 20 micron (nominal)
Size: 10" Big Blue
Media: Pleated polyester/polypropylene
Temperature Range: 4°C – 45°C
Filter Type: Washable pleated sediment cartridge
Function: Mechanical particle removal only
Not Suitable For
Chlorine, taste, or odour removal
Bacteria or virus filtration
Dissolved chemical contaminants
Fine polishing (<10 micron applications)
Summary
A high-flow, reusable pleated sediment filter designed for coarse first-stage filtration in 10" Big Blue systems. It is best used to capture larger debris early, protecting downstream finer micron and carbon filters.
For best results, pair with:
A 10 micron or 5 micron second stage, and
A carbon filter for taste/odour improvement.
