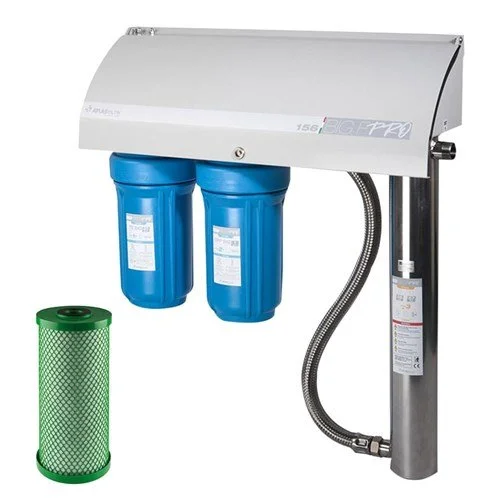

Atlas Filtri Big F Pro 156 with 5 Mic Carbon 10" BIG - UV Filtration System

$2,420.00

The Atlas Filtri BIG F PRO 156 with 5 Micron Carbon 10" BIG is a high-flow water filtration and UV disinfection system designed for domestic, rainwater, bore-water, and suitable commercial applications. It combines 5 micron carbon filtration with UV-C disinfection to reduce sediment, chlorine, taste, odour, and selected organic contaminants while providing chemical-free microbiological treatment.

The Atlas Filtri BIG F PRO 156 with 5 Micron Carbon 10" BIG is a high-flow water filtration and UV disinfection system designed for domestic, rainwater, bore-water, and suitable commercial applications. It combines 5 micron carbon filtration with UV-C disinfection to reduce sediment, chlorine, taste, odour, and selected organic contaminants while providing chemical-free microbiological treatment.

    • 10" BIG 5 micron carbon cartridge

    • 5 micron fine sediment filtration

    • Activated carbon for chlorine, taste, and odour reduction

    • Helps reduce selected organic contaminants

    • High-flow filtration design

    • UV-C microbiological disinfection

    • Chemical-free UV treatment

    • Stainless-steel UV reactor

    • Digital controller with lamp-life monitoring

    • UV lamp replacement alarm

    • Pre-plumbed configuration

    • Compact design

    • Helps protect downstream plumbing and equipment

    • Whole-house water filtration and UV disinfection

    • Rainwater treatment

    • Bore and well water

    • Domestic water supplies

    • Rural water treatment

    • Commercial water filtration

    • Chlorine, taste, and odour reduction

    • Pre-filtration before UV disinfection

    • Protection of pumps, valves, and plumbing

  • System Type: Carbon filtration + UV disinfection

    Filter Size: 10" BIG

    Filter Type: Activated carbon cartridge

    Micron Rating: 5 micron

    Filtration Function: Sediment, chlorine, taste, odour, and selected organic contaminant reduction

    UV System: High-output UV-C

    UV Reactor: Stainless steel

    Connections: 1" BSP

    Maximum Operating Pressure: 8.3 bar

    Temperature Range: 4°C to 45°C

    Controller: Digital with lamp-life monitoring and alarm

    Installation: Pre-plumbed

  • Typical Replacement Interval: Every 6–12 months, depending on water quality, chlorine levels, sediment loading, and water usage.

    Replace Sooner If:

    • Water flow decreases noticeably.

    • Pressure drop increases across the filter.

    • Carbon cartridge becomes heavily clogged.

    • Taste or odour reduction performance declines.

    • Chlorine breakthrough occurs.

    UV Lamp: Replace approximately every 12 months, according to the manufacturer's specified lamp life.

    Quartz Sleeve: Inspect and clean regularly. Replace if cracked, damaged, or heavily scaled.

    Quartz Sleeve O-Ring: Inspect annually and replace if damaged or deteriorated.

    Best Used With

    • Sediment pre-filter for high-sediment water.

    • Additional pre-treatment for high iron, manganese, hardness, or turbidity.

    • Multi-stage filtration systems for improved water quality.

    • UV disinfection for microbiological treatment.

    Not Suitable For

    • Dissolved salt or TDS reduction.

    • Water softening or hardness reduction.

    • Significant iron or manganese removal without suitable pre-treatment.

    • Complete removal of dissolved chemical contaminants.

    • Heavy sediment loads without suitable pre-filtration.

    • Generic Replacement for Puretec Hybrid-G6
