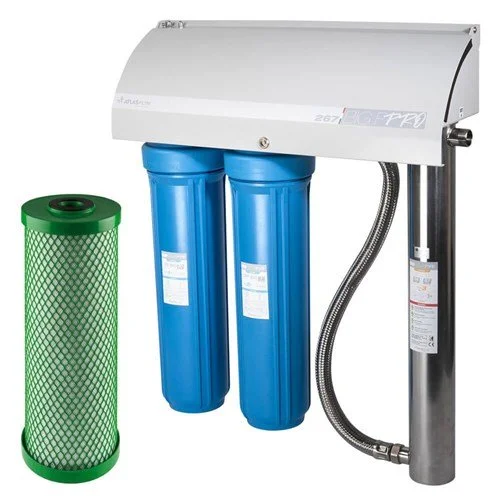

20" BIG 5 micron carbon filtration
5 micron filtration for fine sediment reduction
Activated carbon media for chlorine, taste, and odour reduction
Helps reduce selected organic contaminants
High-flow whole-house filtration
High-output UV-C disinfection
Chemical-free microbiological treatment
Stainless-steel UV reactor
Digital controller with lamp-life monitoring
UV lamp replacement alarm
Pre-plumbed configuration
Weather-resistant protective frame
1" inlet and outlet connections
Helps protect downstream plumbing and equipment
-
Whole-house water filtration and UV disinfection
Rainwater harvesting and treatment
Bore and well water
Rural and off-grid water supplies
Domestic water filtration
Commercial water treatment
Chlorine, taste, and odour reduction
Pre-filtration before UV disinfection
Protection of pumps, valves, plumbing, and downstream equipment
-
System Type: Carbon filtration + UV disinfection
Filter Size: 20" BIG
Filter Type: 5 micron carbon cartridge
Micron Rating: 5 micron
Filtration Function: Sediment, chlorine, taste, odour, and selected organic contaminant reduction
UV System: High-output UV-C
UV Reactor: Stainless steel
Connections: 1" BSP
Maximum Operating Pressure: 8.3 bar
Temperature Range: 4°C to 45°C
Controller: Digital with lamp-life countdown and alarm
Controller Protection: IP54
Power Supply: 110–240 V AC, 50/60 Hz
Installation: Pre-plumbed
-
Typical Replacement Interval: Every 6–12 months, depending on water quality, chlorine levels, sediment loading, and water usage.
Replace Sooner If:
Water flow decreases noticeably.
Pressure drop increases across the filter.
Carbon cartridge becomes heavily clogged.
Taste or odour reduction performance declines.
Chlorine breakthrough occurs.
UV Lamp: Replace approximately every 12 months, according to the manufacturer's specified lamp life.
Quartz Sleeve: Inspect and clean regularly. Replace if cracked, damaged, or heavily scaled.
Quartz Sleeve O-Ring: Inspect annually and replace if damaged or deteriorated.
Best Used With
Sediment pre-filter for high-sediment water.
Additional pre-treatment for high iron, manganese, hardness, or turbidity.
Multi-stage filtration systems for improved water quality.
UV disinfection for microbiological treatment.
Not Suitable For
Dissolved salt or TDS reduction.
Water softening or hardness reduction.
Significant iron or manganese removal without suitable pre-treatment.
Complete removal of dissolved chemical contaminants.
Heavy sediment loads without suitable pre-filtration.
