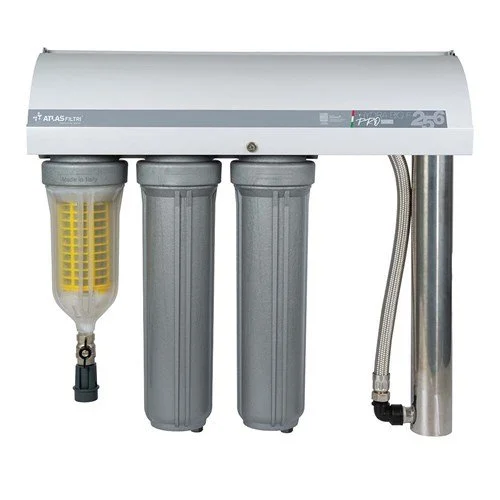

Two-stage 25 micron + 1 micron SANIC filtration
20" BIG filter cartridges
Antimicrobial SANIC polypropylene media
Reduces sand, rust, dirt, silt, scale, and suspended solids
56 W high-output UV-C disinfection
Chemical-free microbiological treatment
304 stainless-steel UV reactor
Digital controller with lamp-life countdown
UV lamp replacement alarm
IP54-rated controller
Lockable, weather-resistant protective frame
Pre-plumbed plug-and-play design
Reversible mounting
1" inlet and outlet connections
-
Whole-house water filtration and UV disinfection
Rainwater harvesting and treatment
Bore and well water
Rural and off-grid water supplies
Domestic water treatment
Commercial water filtration
Sediment pre-filtration before UV
Protection of pumps, valves, plumbing, and downstream equipment
-
System Type: Two-stage sediment filtration + UV disinfection
Filter Size: 20" BIG
First Stage: 25 micron SANIC sediment cartridge
Second Stage: 1 micron SANIC sediment cartridge
UV Lamp: 56 W high-output UV-C
UV Flow Rate: 54 L/min @ 40 mJ/cm²
UV Flow Rate: 70 L/min @ 30 mJ/cm²
UV Reactor: 304 stainless steel
UV Dose: 30–40 mJ/cm²
Connections: 1" BSP
Maximum Operating Pressure: 8.3 bar
Temperature Range: 4°C to 45°C
Power Supply: 110–240 V AC, 50/60 Hz
Power Consumption: 61 W
Lamp Life: Approximately 9,000 hours
Controller: Digital with lamp-life countdown and alarm
Controller Protection: IP54
Dimensions: 806 × 722 × 205 mm
Weight: Approximately 22 kg
UV Transmittance: >95%
WaterMark: WM-022909
-
Typical Replacement Interval: Approximately every 6 months for sediment cartridges, depending on water quality, sediment levels, and usage.
25 Micron SANIC Cartridge: Replace when clogged, heavily discoloured, or when water flow decreases.
1 Micron SANIC Cartridge: Replace when flow decreases or pressure loss becomes excessive.
UV Lamp: Replace every 9,000 hours or approximately 12 months.
Quartz Sleeve: Inspect and clean at least quarterly. Replace if cracked, damaged, or heavily scaled.
Quartz Sleeve O-Ring: Inspect annually and replace if damaged or deteriorated.
Maintenance Kit: Available for routine servicing.
Best Used With
Coarse sediment pre-filter for high-sediment water.
Activated carbon filtration for chlorine, taste, and odour reduction.
Iron and manganese treatment where required.
Additional pre-treatment where hardness or UV transmittance is outside recommended limits.
Not Suitable For
Dissolved salt or TDS reduction.
Water softening or hardness reduction.
Chlorine, taste, or odour reduction without carbon filtration.
Dissolved chemical contaminant removal.
Significant iron or manganese removal without suitable pre-treatment.
Heavy sediment loads without suitable pre-filtration.
