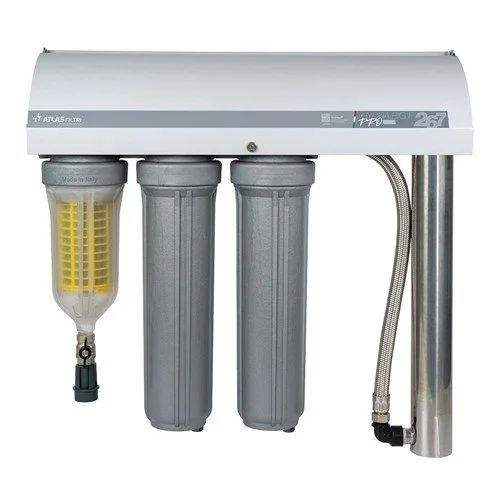

Two-stage 25 micron + 1 micron SANIC filtration
20" BIG filter cartridges
Antimicrobial SANIC polypropylene cartridges
Reduces sand, rust, dirt, silt, scale, and suspended solids
High-flow whole-house filtration
High-output UV-C disinfection
Chemical-free microbiological treatment
Stainless-steel UV reactor
Digital controller with lamp-life countdown
UV lamp replacement alarm
IP54-rated controller
Lockable, weather-resistant protective frame
Pre-plumbed plug-and-play design
Reversible mounting for flexible installation
1" inlet and outlet connections
-
Whole-house water filtration and UV disinfection
Rainwater harvesting and treatment
Bore and well water
Rural and off-grid water supplies
Domestic water treatment
Commercial water filtration
Sediment pre-filtration before UV
Protection of pumps, valves, plumbing, and downstream equipment
-
System Type: Two-stage sediment filtration + UV disinfection
Filter Size: 20" BIG
First Stage: 25 micron SANIC sediment cartridge
Second Stage: 1 micron SANIC sediment cartridge
UV System: High-output UV-C
UV Reactor: Stainless steel
UV Dose: 30–40 mJ/cm²
Connections: 1" BSP
Maximum Operating Pressure: 8.3 bar
Temperature Range: 4°C to 45°C
Power Supply: 110–240 V AC, 50/60 Hz
Controller: Digital with lamp-life countdown and alarm
Controller Protection: IP54
Installation: Pre-plumbed plug-and-play
-
Typical Replacement Interval: Approximately every 6 months, depending on water quality, sediment levels, and water usage.
25 Micron SANIC Cartridge: Replace sooner if flow decreases, pressure loss increases, or the cartridge becomes clogged or discoloured.
1 Micron SANIC Cartridge: Replace sooner if flow decreases or pressure loss becomes excessive.
UV Lamp: Replace approximately every 12 months, according to the specified lamp operating life.
Quartz Sleeve: Inspect and clean at least quarterly. Replace if cracked, damaged, or heavily scaled.
Quartz Sleeve O-Ring: Inspect annually and replace if damaged or deteriorated.
Maintenance Kit: Available for routine servicing of the system.
Best Used With
Coarse sediment pre-filter for high-sediment water.
Additional treatment for high iron, manganese, hardness, or turbidity.
Activated carbon filtration where chlorine, taste, or odour reduction is required.
Multi-stage filtration systems for improved water quality and equipment protection.
Not Suitable For
Dissolved salt or TDS reduction.
Water softening or hardness reduction.
Chlorine, taste, or odour reduction without carbon filtration.
Dissolved chemical contaminant removal.
Significant iron or manganese removal without suitable pre-treatment.
Heavy sediment loads without suitable pre-filtration.
