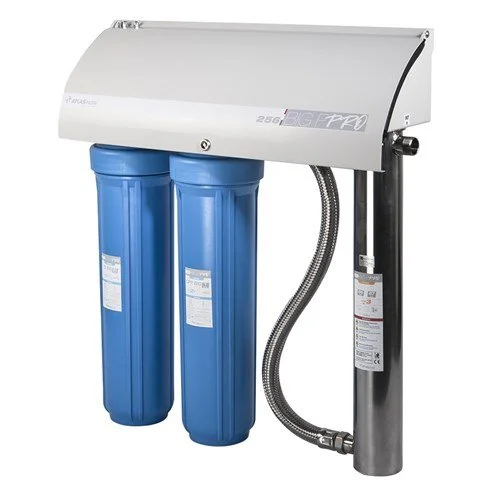

Two-stage 20" BIG sediment filtration
20 micron + 1 micron filter cartridges
High-flow capacity up to 70 L/min
High-output UV-C disinfection
Chemical-free microbiological treatment
Stainless-steel UV reactor
Digital controller with lamp-life countdown
UV lamp replacement alarm
Pre-plumbed plug-and-play design
Weather-resistant protective frame
Reversible mounting for flexible installation
1" inlet and outlet connections
Helps protect pumps, valves, plumbing, and downstream equipment
-
Whole-house water filtration and UV disinfection
Rainwater harvesting systems
Bore and well water
Rural and off-grid water supplies
Domestic water treatment
Commercial water filtration
Sediment pre-filtration before UV
Protection of pumps, valves, and downstream equipment
-
System Type: Two-stage sediment filtration + UV disinfection
Filter Size: 20" BIG
First Stage: 20 micron sediment cartridge
Second Stage: 1 micron sediment cartridge
UV Flow Rate: Up to 70 L/min
UV Dose: 30 mJ/cm² at 70 L/min
UV System: High-output UV-C
UV Reactor: Stainless steel
Connections: 1" BSP
Maximum Operating Pressure: 8.3 bar
Temperature Range: 4°C to 45°C
Power Supply: 110–240 V AC, 50/60 Hz
Controller: Digital with lamp-life countdown and alarm
Installation: Pre-plumbed plug-and-play
-
Typical Replacement Interval: Approximately every 6 months, depending on water quality, sediment levels, and water usage.
20 Micron Filter: Replace sooner if flow decreases, pressure loss increases, or the cartridge becomes heavily clogged or discoloured.
1 Micron Filter: Replace sooner if flow decreases or pressure loss becomes excessive.
UV Lamp: Replace approximately every 12 months, according to the manufacturer's specified lamp life.
Quartz Sleeve: Inspect and clean regularly. Replace if cracked, damaged, or heavily scaled.
Quartz Sleeve O-Ring: Inspect annually and replace if damaged or deteriorated.
Best Used With
Coarse sediment pre-filter for high-sediment water.
Activated carbon filtration where chlorine, taste, or odour reduction is required.
Additional treatment for high iron, manganese, hardness, or turbidity.
Multi-stage filtration systems for improved water quality and equipment protection.
Not Suitable For
Dissolved salt or TDS reduction.
Water softening or hardness reduction.
Chlorine, taste, or odour reduction without carbon filtration.
Dissolved chemical contaminant removal.
Significant iron or manganese removal without suitable pre-treatment.
Heavy sediment loads without suitable pre-filtration.
-
Generic Replacement for Puretec Hybrid-G9
Generic Replacement for Davey KMCS-TK
