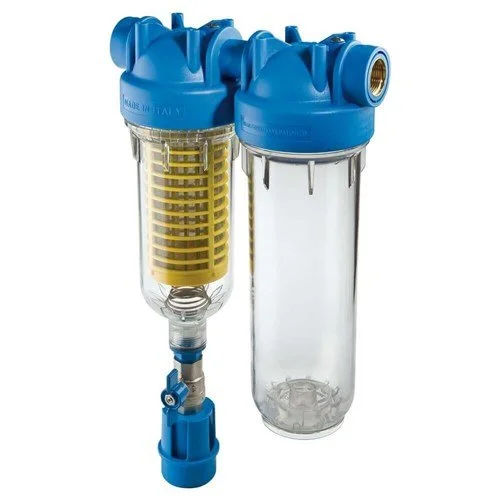

Hydra DUO 10" STD with 90mic Self cleaning Filter - Clear
Hydra Duo Self-Cleaning Filter – 1” BSP Brass
The Hydra Duo is a versatile two-stage filtration system combining a 90-micron stainless steel self-cleaning pre-filter with one empty 10” standard filter housing.
The system is supplied ready to customise — simply choose a 10” standard filter cartridge from our range to suit your water quality and filtration requirements.
Flow rates will depend on the cartridge selected.
The Hydra Duo is ideal for coarse sediment removal from rainwater and mains water supplies. It can also be used as a pre-filtration stage for rural water treatment systems, as well as a range of commercial and industrial applications.
The clear PET filter bowls allow you to easily see what is being collected inside the housings, while the included pressure gauges help you monitor pressure changes and determine when the filters need attention.
Self-Cleaning Pre-Filter
The built-in Hydra filter removes larger sediment and particles before the water reaches the cartridge filter. When the filter becomes dirty, the counter-current flushing system allows the stainless-steel mesh to be cleaned without needing to remove the filter.
Cleaning can be carried out manually, with automatic flushing also available depending on the configuration.
The drain funnel incorporates a backflow prevention device, making the Hydra suitable for installation on both mains and rural water supplies.
Features
90-micron stainless steel self-cleaning mesh filter
One 10” standard filter housing for additional filtration
1” BSP brass inlet and outlet
Clear PET filter bowls for easy visual inspection
Pressure gauges for monitoring filter condition
Manual or automatic self-cleaning operation
Low-maintenance design
Antimicrobial flat seals
Backflow prevention on the drain outlet
Supplied with bracket, spanner and O-ring lubricant
Made in Italy
Working Conditions
SpecificationRatingMaximum Working Pressure8 bar (116 psi)Maximum Working Temperature45°C (113°F)Minimum Working Temperature4°C (39.2°F)
Build Your Own Multi-Stage Filtration System
The Hydra Duo gives you the flexibility to build a filtration system around your specific water quality.
The first stage handles coarse sediment through the self-cleaning mesh filter, while the 10” housing can be fitted with a cartridge selected for your particular application — such as finer sediment, carbon or other specialist filtration.
Simply select the cartridge that suits your needs from our range.
Because cartridge selection affects restriction and performance, flow rates will vary depending on the filter installed.
