Hydra TRIO 10" STD with 90mic Self cleaning Filter - Clear
Hydra Trio Self-Cleaning Filter – 1” BSP

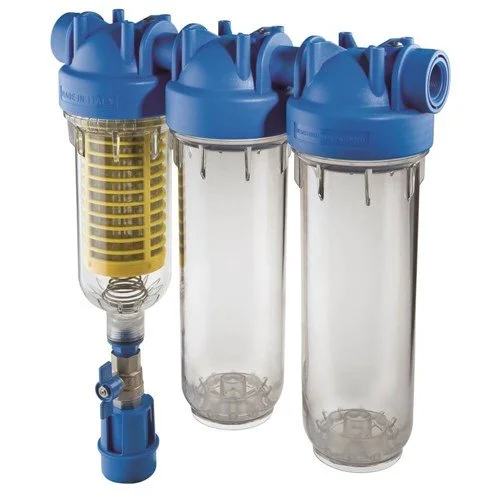

The Hydra Trio is a versatile multi-stage filtration system combining a 90-micron stainless steel self-cleaning pre-filter with two empty 10” standard filter housings.
The system is supplied ready to customise — simply choose two 10” standard filter cartridges from our range to suit your water quality and filtration requirements.
Flow rates will depend on the cartridges selected.
The Hydra Trio is ideal for coarse sediment removal from rainwater and mains water supplies. It can also be used as a pre-filtration stage for rural water treatment systems, as well as a range of commercial and industrial applications.
The clear PET filter bowls allow you to easily see what is being collected inside the housings, while the included pressure gauges help you monitor pressure changes and determine when the filters need attention.
Self-Cleaning Pre-Filter
The built-in Hydra filter removes larger sediment and particles before the water reaches the cartridge filters. When the filter becomes dirty, the counter-current flushing system allows the stainless-steel mesh to be cleaned without needing to remove the filter.
Cleaning can be carried out manually, with automatic flushing also available depending on the configuration.
The drain funnel incorporates a backflow prevention device, making the Hydra suitable for installation on both mains and rural water supplies.
Features
90-micron stainless steel self-cleaning mesh filter
Two 10” standard filter housings for additional filtration
1” BSP plastic inlet and outlet
Clear PET filter bowls for easy visual inspection
Pressure gauges for monitoring filter condition
Manual or automatic self-cleaning operation
Low-maintenance design
Antimicrobial flat seals
Backflow prevention on the drain outlet
Supplied with bracket, spanner and O-ring lubricant
Made in Italy
Working Conditions
SpecificationRatingMaximum Working Pressure8 bar (116 psi)Maximum Working Temperature45°C (113°F)Minimum Working Temperature4°C (39.2°F)
Build Your Own Multi-Stage Filtration System
The Hydra Trio gives you the flexibility to build a filtration system around your specific water quality.
The first stage handles coarse sediment through the self-cleaning mesh filter, while the two 10” housings can be fitted with cartridges selected for your particular application — such as finer sediment, carbon or other specialist filtration.
Simply select the two cartridges that suit your needs from our range.
Because cartridge selection affects restriction and performance, flow rates will vary depending on the filters installed.
